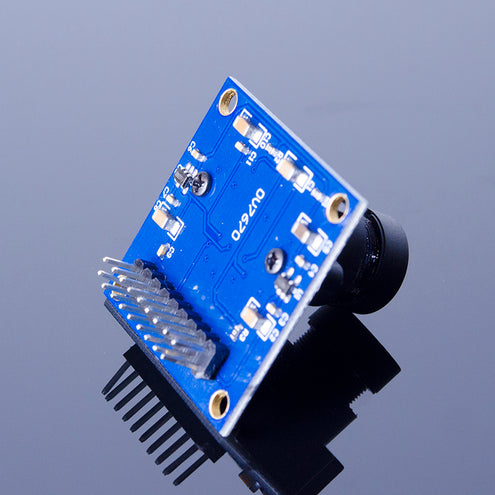

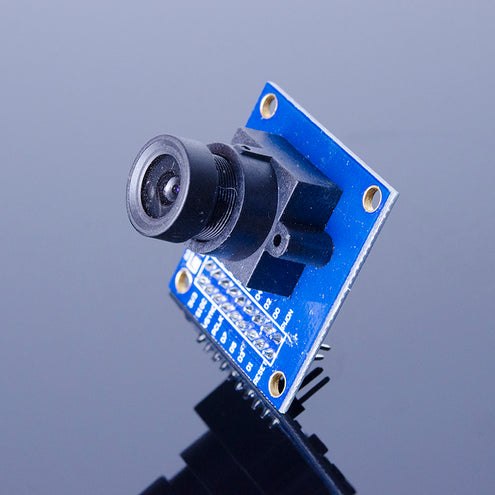

ACROBOTIC OV7670 Camera Module (No FIFO)
Be the first review

SKU: CAM-00002

In Stock

$9.95

Secured and trusted checkout with
DetailsReviewsProduct Tags

The OV7670 (datasheet) is a low-cost image sensor and Digital Signal Processor (DSP) that can operate at a maximum of 30fps with a pixel resolution of 640×480 (VGA) equivalent to 0.3 Megapixels. The captured image can be pre-processed by the DSP before sending it out. This preprocessing can be configured via the Serial Camera Control Bus (SCCB). It's very useful for Electronic lovers, you can use the camera with microcontroller development boards such as STM32, ESP8266, or Arduino, as well as single-board computer like the Raspberry Pi or BeagleBoard.

Please note that the board in this listing includes the OV7670 camera module only. We also carry one that includes both the AL422B FIFO chip and the OV7670 camera module!

Features:

  • Breakout board 30×30mm for OV7670 camera module; includes lens mount and 3.6mm Focal Length lens
  • Operating voltage of 3.3VDC
  • Operating temperature of 0~50°C
  • VGA resolution (640×480), can be downsampled to QVGA (320×240) and QQVGA (160×120)
  • I2C communication with data transfer rates of 1mbps (128KBps)
  • Pixel area of 3.6μm×3.6μm
  • Viewing angle of 25 degrees
  • Maximum frame rate of 30fps
