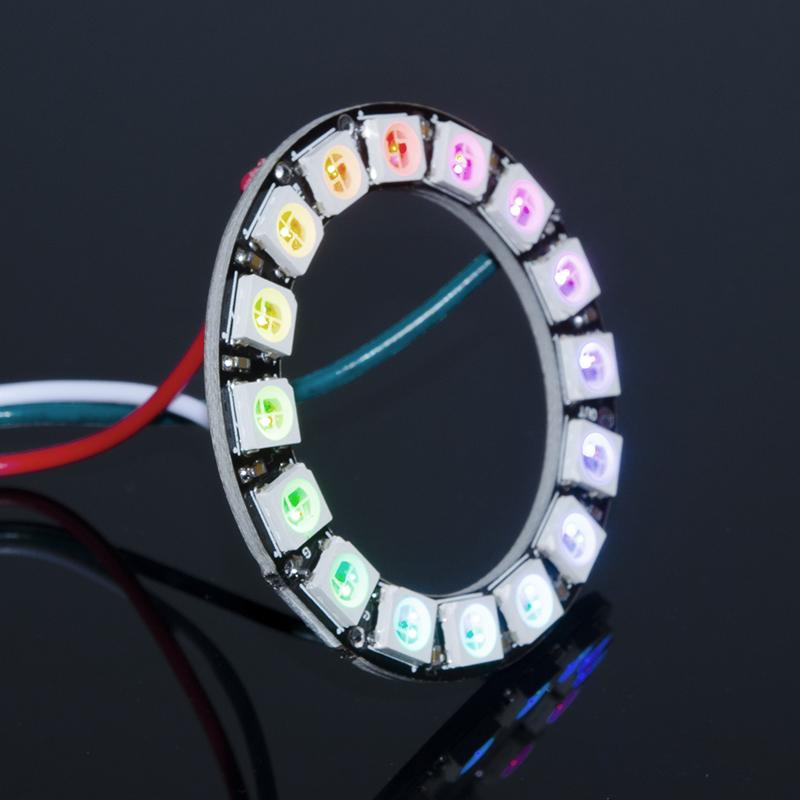

16-Pixel RGB LEDs WS2812B Ring (Black PCB)


  • Compatible with Adafruit NeoPixels LEDs
  • 31mm ID, 45mm OD, black PCB carrying 16 ultra-bright LEDs
  • Data In, Data Out, Power (5VDC recommended), and Ground pins available
  • 1×Female-Male Pair of JST-SM Wires included


SKU: LED-00041 Categories: , Tags: , ,


This 16-pixel ring provides an excellent arrangement of WS2812B RGB smart LEDs for use in any electronics project. The circular pattern of individually controlled LEDs allows us to to create incredible lighting displays for data visualization, status indication, and many more tasks!

These rings are 45/31mm in diameter (outer/inner) and carry 16 ultra-bright WS2812B LEDs. We include a pair of the standard JST connector (1 male and 1 female) so that you can connect multiple rings in a row, or even other WS2812B products such as our flexible strips!

Each LED is positioned at an equal distance from the two adjacent LEDs.


  • 31mm ID, 45mm OD, black PCB carrying 12 ultra-bright WS2812B RGB LEDs
  • Hard, black PCB (1.6mm) with 4 pins for 5VDC, GND, Data In, and Data Out
  • 1×Female-Male Pair of JST-SM Wires included
  • Multiple rings can be interconnected using the included 3-pin JST connectors (soldering required)
  • Fully addressable LEDs allow for individual control of color and brightness
  • Compatible with Adafruit NeoPixels LEDs

Additional information

Item Weight

0.704 ounces

Package Dimensions

4.7 x 3.3 x 0.5 inches



Item model number


Customer Reviews

.noUnderline a

Date First Available

January 12, 2017

Color Name

5050 RGB (Black PCB)

Material Type

Copper 2.0oz PCB
