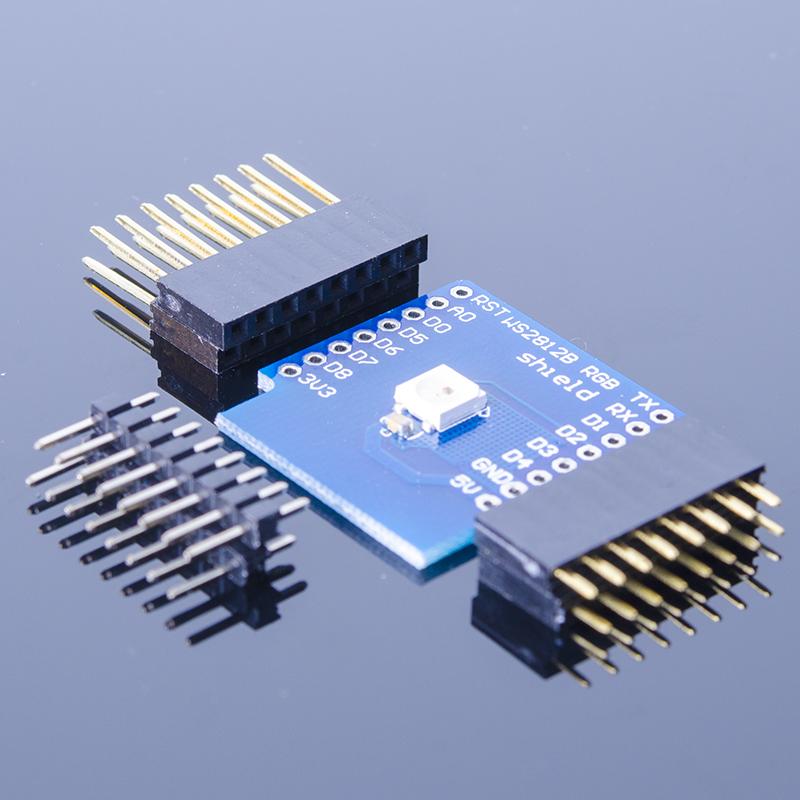

The WeMos D1 Mini family of boards is one of the latest additions to the ESP8266-based IoT ecosystem. The WeMos D1 Mini WS2812B RGB LED Shield includes a colorful LED that can add some ‘pizazz’ to your electronics projects.
The WeMos D1 Mini WS2812B RGB LED Shield is designed so that pin D2 on the WeMos D1 Mini V2 board is connected to the WS2812B RGB LED. This means that you’ll need to configure your software to use D2 for controlling the color of the LED. There are plenty of existing examples to work with the WS2812B including the NeoPixel and FastLED libraries for Arduino. This tiny (5mm×5mm) LED can serve as a status indicator for your WeMos ESP8266 D1 Mini-powered projects.
What makes the WeMos family of development boards for the ESP8266 great is the availability of stackable, plug-and-play shields such as this WeMos D1 Mini BMP-180 Temperature/Barometric Pressure Sensor Shield. Without much fuss, it’s very easy to connect, control, and monitor a wide variety of electronic components to the ESP8266. The WeMos family is a great solution for building projects quickly using the ESP8266 SoC.
Different users have different applications for the WeMos shields, thus we’ve found that the easiest way to please everyone is to ship the boards with the headers unsoldered. Each board in this kit includes a pair of Male, Female, Long Female pin headers for you to choose. Soldering is required for installing the header pins!
- Compatible with Adafruit NeoPixel LEDs
- WS2812B Data In pin is connected to D2
- Fully addressable LEDs allow for individual control of color and brightness
- Breaks out all the WeMos pins for easy access when stacked on top of/below the WeMos D1 Mini V2
