WeMos ESP8266 D1 Mini Prototyping Shield


  • Secure the connections of components to the WeMos by soldering them in
  • Create a custom WeMos Shield by soldering components to the prototyping area
  • 8×4 + 2×8 holes available for prototyping; additionally, 2 rows on each side are also available and electrically connected to the pins
  • Easiest way to add any components to your WeMos D1 Mini project for Arduino, NodeMCU, AT+Commands (Plug and Play)


SKU: ACR-00009 Categories: , , Tags: , ,

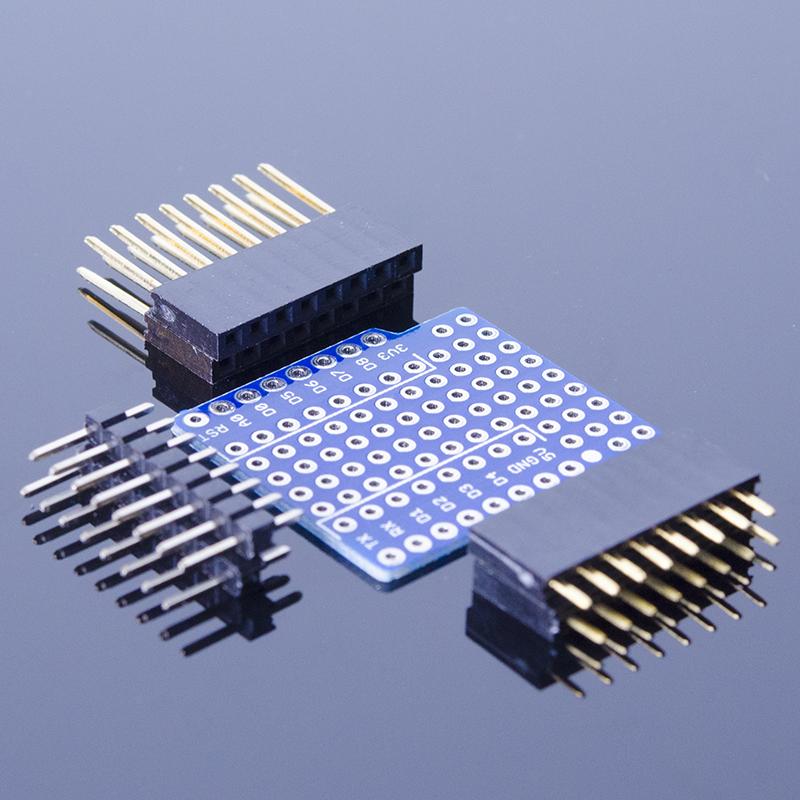

The WeMos D1 Mini family of boards is one of the latest additions to the ESP8266-based IoT ecosystem. The WeMos D1 Mini Prototyping Shield is designed to allow you to add different components to your WeMos D1 Mini. Just like with a Prototyping (Proto) board, you can use the holes to place the pins of your components (e.g., sensors, breakout boards, screw terminals) and solder them securely in place. You can then wire them to any of the pins on the Shield, which are connected to the corresponding pins on the WeMos D1 Mini!

The latest design of the WeMos D1 Mini Prototyping Shield has a row of holes next to the row for placing the connectors, which are electrically routed to the corresponding pin. Having 2 rows available for each pin (one for the connector, one for a wire or component lead) makes the wiring process mcuh, much easier!

What makes the WeMos family of development boards for the ESP8266 great is the availability of stackable, plug-and-play shields such as this WeMos D1 Mini Prototyping Shield. Without much fuss, it’s very easy to connect, control, and monitor a wide variety of electronic components to the ESP8266. The WeMos family is a great solution for building projects quickly using the ESP8266 SoC.

Different users have different applications for the WeMos shields, thus we’ve found that the easiest way to please everyone is to ship the boards with the headers unsoldered. Each board in this kit includes a pair of Male, Female, Long Female pin headers for you to choose. Soldering is required for installing the header pins!
